17MM Infrared Thermal Imaging Camera
- Model
- TJIT
Product review
Description
Body under infrared thermal imaging

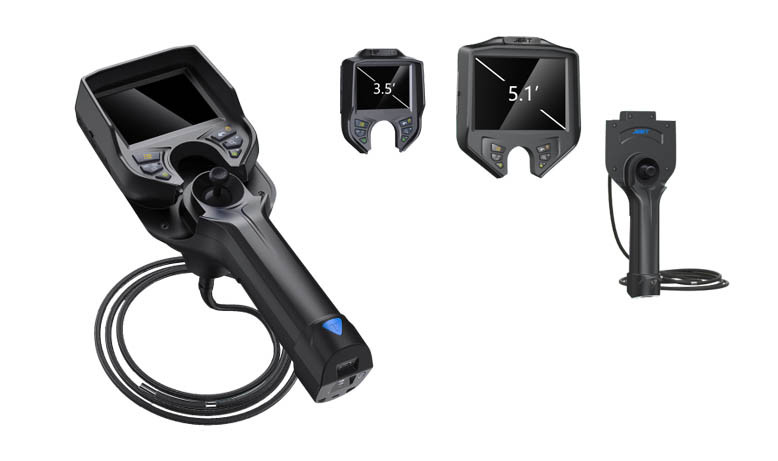

Monitor interchangable
Modular design of the host and handle, fast combination; can replace thermal imaging probe handle, white light probe handle, infrared light probe handle, red and white light integrated handle, to meet the needs of different applications.

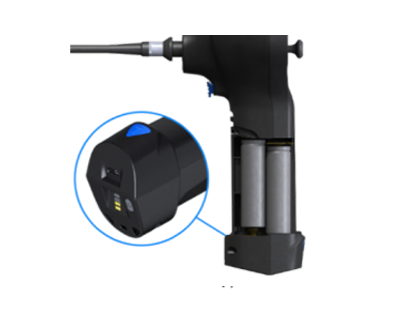

Battery life
IR Infrared Industrial Borescope Parameters
Tube system
|
Specification
|
|
Resolution |
160*120 |
|
Probe diameter |
Φ17mm |
|
Temperature range |
-20-150° |
|
Object distance ratio | 15:1 | |
radiancy | 0.95 | |
Wavelength | 8-14μm | |
FOV | 57°×42° | |
Bending control | Flexible rigid bending | |
Tube length | 0.5m-3m | |
Host system | Tube material | Rigid tube |
Monitor | 3.5/5.7 inch | |
Image resolution | 640×480 / 1280×720 / 1920×1080 | |
Language | Chinese,English、Korea | |
Image mode | Thermal image | |
Solfware function | snapshoot、video、playback、delete、zoom | |
Structure | Hand integrated host | |
Image/video form | JPEG/MOV/AVI | |
Data interface | HDMI、Micro USB、waterproof & dustproof | |
Battery life | ≥5 hours | |
Battery capacity | 3.7V,3200mAh×2 | |
Charging | DC5V,Max current 1A | |
Storage | Max 32G TF card | |
Compatibility | Can replace/upgrade host , compatible with different pipeline probes | |
Total weight | 1Kg | |
Accessories | Standard Configuration | Special instrument box, Thermal image videoscope, battery, card reader, storage card, charger, data cable, instruction manual, certificate of qualification |
