T51X-Series Industrial Video Endoscope
Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection.
White Balance: Auto white balance with strong color reduction; manual-control white balance according to inspection needs.
Exposure Setting: exposure suppression--the polished object is also inspected clearly; exposure compensation--when checking large cavity, it can be more effective and clearer.
Normal Mode: HD image effect;
Negative Film Mode: Enhance the ability to compare and analyze the internal defects of the inspected objects.
Support 8X zoom in/out
Flexible Articulation Control
360 ° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle ≥100°, even the tube reaches 10 meters.
360° precision articulation
Maximum bending angle≥190

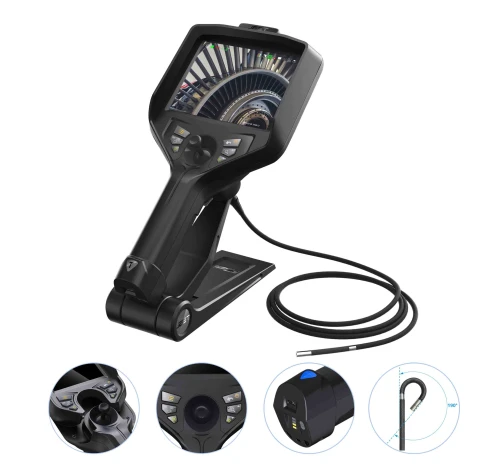

T51X series videoscope is module designed. Configured with 5.1 inches HD display, it can be interchangeable with 3.5 inches small display, suitable for different inspection requirements. The monitor and probe can be separated by one button. It is compatible with different diameter tubes like: 2.0mm/2.2mm/2.8mm/3.8mm/6mm, as well as 3.8mm&6mm sideview tubes and 6mm dual lens tube.
High temperature alarm function: Orange alarm when the temperature is above 65 ℃; Red alarm and shutdown when the temperature is more than 80 ℃.
The image can be outputted to HD display by HDMI.
Original dual battery design,8 hours working.
Display resolution: 1280*960, high light, wide color gamut, all sight viewing angle, ensure clear image, rich colors and good color reproduction.
All products are complied with RoHS, CE and ISO standard and passed testing for temperature，waterproof，drop，vibration and pressure. We devote ourselves to providing high-quality professional inspection instrument to every customer.
0° front view/ 90° sideview/ front view& sideview dual lens
Front ceramic light/ Rear-mounted optic fiber cold
Maximum: 100000+Lx 1~9 levels adjustable light
1.5m/3.0m/5.0m/30m (customized for other length)
Protecting Device of Durability
42mm buffer protection device between tube and handle
2-way / 360° joystick-control articulation
Damping positioning & articulation lock device

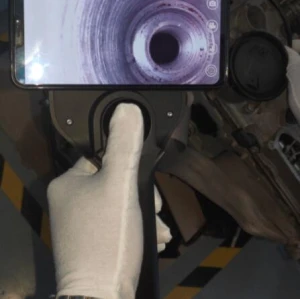

Image transmission to Mobile phone, computer by Wi-Fi(optional)
5.1" color IPS display, all sight viewing angle, sunshade design
English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
White Balance Suppression
5 levels adjustable
Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
Negative film/ black & white/standard
High temperature alarm（optional）
Playback, image parameters adjust and rotate
Hand-held integrated design
Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
HDMI video output, Micro USB port with water &dust proof device
Interchangeable monitor and tube with different diameters

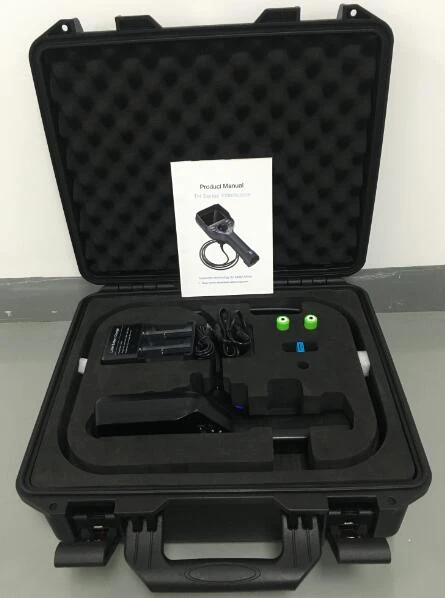

Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
