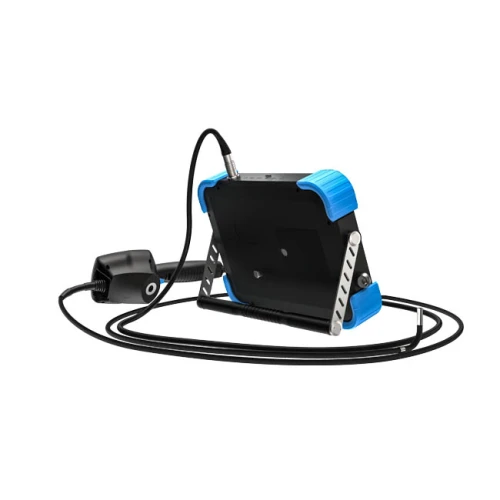

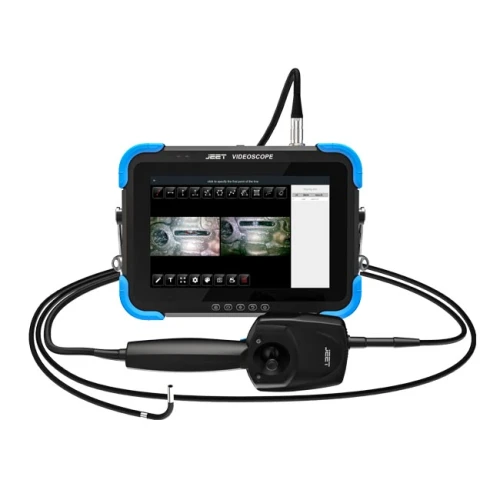

FS 3D Measurement Industrial Videoscope
- Model
- FS
Review
Description
Product function interface
Main Interface
Dual video switching
Image settings and resolution selection
Full Screen
Utility software
1、 MDI report generation and delivery software
Test report editing
Test report generates a PDF file
Test report is sent to the mobile terminal via bluetooth
2、Dual video input switching software
Parameters
|
Probe |
|||
|
Diameter |
6.0mm |
||
|
DOF
|
10~100mm
|
||
|
Sensor
|
HD image sensor
|
||
Resolution | HD 1000000 pixels | ||
Working length | 2m/3m, customized | ||
Material | Abrasion-resistant alloy | ||
Temperature | No | ||
|
System
|
|||
|
Case size
|
360×360×100mm
|
||
|
Host size
|
300×220×59mm
|
||
|
Host weight
|
1.9KG
|
||
Host material | magnesium aluminum alloy | ||
Display resolution | 1920×1200 | ||
Joystick handle size | 235×90×70mm | ||
Joystick handle weight | 0.4KG | ||
Articulation | 360° | ||
Bending angle | ≤150° | ||
Storage | Internal memory/SD card/U disk（optional） | ||
I/O port | Micro USB×2 mini HDMI×1 SD slot×1 Air plug×1 | ||
Video output | HDMI | ||
Light source | Real cold light source+fiber | ||
Brightness level | 5X | ||
Illumination | Max 100000LX | ||
White balance | Automatic | ||
Battery capacity | 3000mA/3.7V ×4 | ||
Battery charging | 12V，1A | ||
Power | 10W | ||
Battery work time | 2.5h | ||
DC mode | Support charging while use | ||
|
Software |
|||
|
Operation system
|
Real-time intelligent multitasking operating system
|
||
|
User interface
|
Button+touch screen
|
||
|
File management
|
Intelligent file management system, support to the memory and SD card, USB storage media files and folders for the following operations: copy, cut, rename, delete, and so on.
|
||
Image adjustment | Display ratio adjustment (1:1 display/full screen display), resolution selection, camera parameter setting (brightness,contrast, gamma,chroma,saturation,sharpness),negative filter, digital zoom (5x digital), image freezing (real-time graffiti saving), call contrast | ||
Image zoom in/out | 3X | ||
Image format | JPG | ||
Video format | MP4 | ||
Text annotation | Photo text overlay, can choose the font size of the annotation text | ||
Image annotation | Seal (default/custom), doodle, text input | ||
Software upgrade | On-site upgrades are available via SD card and USB storage media | ||
Language | English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean | ||
Utility software | MDI report generation software Dual video input switching software (it shall be equipped with the direct side view switching pipeline) Picture in picture comparison software | ||
