JEET Developed 6MM IR Video Endoscope
JEET Developed 6MM IR Video Endoscope
JEET Developed 6MM IR Video Endoscope
JEET Developed 6MM IR Video Endoscope
JEET Developed 6MM IR Video Endoscope
JEET Developed 6MM IR Video Endoscope
Model
TJ

Item specifics

Color
Black

Review

Description

TJ Police Use Videoscope
Highlights
1. White/IR light source, one key toggle
2. Ultra-long viewing distance
3. Flexible options for tube diameter
4. Joystick control, 360° articulation
5. Dual-battery design, long working time.
White/IR light source, one key toggle
Integrated design of IR & white dual light sources. Support one-key fast toggle.
Ultra long viewing distance Police Endoscope
With the use of high-power rear-mounted IR light system, precision coupling technology as well as multi-mode lens group and nano coating technology, it realizes ultra-long viewing distance of more than 18 meters.
360° accurate positioning IR Borescope
360° all-way articulation, damping type positioning design, precise probe locking technology, makes the detection more accurate and efficient.
Stretchable rod
It can be used for inspection on different objects, such as the bottom of a car, ceiling, etc.
Working time
Original design of dual battery mode, working time is more than 8h, real-time battery indication
Output/WiFi
Image transmission by WiFi or HDMI output, displayed with HD screen.
6MM IR Video Endoscope Parameters
Tube System
Probe Diameter(mm)
Φ6.0
Image Resolution
640×480
Video Resolution
640×480
DOF(mm)
10-100mm/50mm-∞
FOV
90°/120°
Light Source
IR
Illuminance
Maximun:100000Lx, 0~9levels
Tube Length
1.5m/3.0m/5.0m (customized for other length)
Protecting Device of Durability
42mm buffer protection device between tube and handle
Articulation
360° all-way

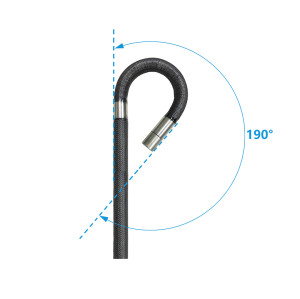

Bending Angle
Maximun:190°
Probe Positioning
Damping positioning & articulation lock device
WiFi Transmission
Image transmission to Mobile phone, computer by WiFi(optional)
Monitor System
Display
3.5"/5.1" colorful TFT display
Zoom in/out
4X
Language
Chinese/ English/Korean
White Balance
Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
IP Level
Probe/tube: IP67
Software Function
Playback, image parameters adjust and rotate
Structure
Hand-held integrated design
Image/video format
JPEG/MOV/AVI
Scale
Compare and analyze the internal defect and size of the inspected object.
Data Port
HDMI video output, Micro USB port with water &dust proof device
Working Time
≥4h
Battery Capacity
3.7V,3200mAh×2
Power Charge
DC5V, 1A
Weight
0.55~0.8Kg
Compatibility
Replaceable monitor and tube with different diameters
Accessories
Standard Configuration
Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
